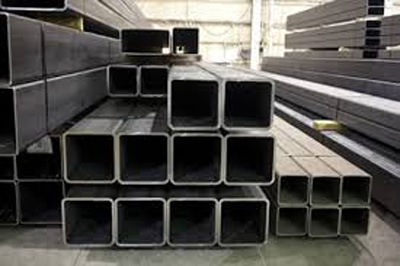

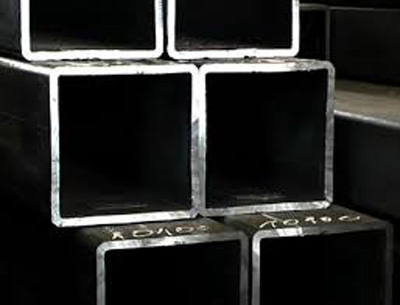

Type: Square and rectangular Steel Hollow Structural Sections, hot-rolled (Black Hollow Structural Sections) and galvanized (Galvanized Hollow Structural Sections)
Applications:
- construction of sheds, shelters, parking, roof panels and shelter panels
- lofts for shops and warehouses, support systems
- frames for coating of building facades, roof casing frames, roof purlins, frames for tile roofs
- grates and protection panels
- storage systems
- agricultural applications
Quality:
- Hollow Structural Sections colled rolled with hot-rolled strip, Steel Grade of the hot-rolled strip is S235, S275 and S355 according to EN 10346 (ST37, ST44 and ST52 according to DIN17100)
- The Hollow Structural Sections can be hot-dipped galvanized in galvanizing bath
Packing:
- In bundles, weight from 500 kg up to 5000 kg (depending on the size) with straps and 2 slings per bundle for easy loading – unloading
- Wall Thickness varies from 2 mm up to 20 mm
- Length 6 m and 12 m
- After agreement, there is possibility for production of different sizes (wall thickness & length)
- Sales per bundles and also per single piece
|
SQUARE HOLLOW STRUCTURAL SECTIONS |
|||||||||||
|
DIMENSIONS (a x a) mm |
THICKNESS (s) mm |
WEIGHT Kg/m |
DIMENSIONS (a x a) mm |
THICKNESS (s) mm |
WEIGHT Kg/m |
DIMENSIONS (a x a) mm |
THICKNESS (s) mm |
WEIGHT Kg/m |
|||
|
25 |
25 |
2 |
1,44 |
90 |
90 |
2 |
5,52 |
8 |
36,63 |
||
|
2,5 |
1,77 |
3 |
8,19 |
10 |
44,67 |
||||||
|
30 |
30 |
2 |
1,76 |
4 |
10,80 |
180 |
180 |
5 |
26,85 |
||
|
2,5 |
2,16 |
5 |
13,34 |
6 |
31,91 |
||||||
|
3 |
2,54 |
6 |
15,82 |
8 |
41,65 |
||||||
|
40 |
40 |
2 |
2,36 |
100 |
100 |
2 |
6,10 |
10 |
50,95 |
||
|
2,5 |
2,94 |
3 |
9,14 |
200 |
200 |
5 |
30,01 |
||||
|
3 |
3,48 |
4 |
12,06 |
6 |
35,68 |
||||||
|
4 |
4,52 |
5 |
14,91 |
8 |
46,68 |
||||||
|
50 |
50 |
2 |
3,01 |
6 |
17,71 |
10 |
57,23 |
||||
|
2,5 |
3,73 |
8 |
23,10 |
12 |
67,35 |
||||||
|
3 |
4,43 |
10 |
27,60 |
15 |
83,80 |
||||||
|
4 |
5,78 |
120 |
120 |
3 |
11,02 |
16 |
87,30 |
||||
|
5 |
7,06 |
4 |
14,57 |
220 |
220 |
6 |
39,52 |
||||
|
60 |
60 |
2 |
3,64 |
5 |
18,05 |
8 |
52,00 |
||||
|
2,5 |
4,51 |
6 |
21,48 |
10 |
63,90 |
||||||
|
3 |
5,37 |
8 |
27,40 |
250 |
250 |
6 |
45,10 |
||||
|
4 |
7,03 |
10 |
33,30 |
8 |
59,24 |
||||||
|
5 |
8,63 |
140 |
140 |
4 |
17,08 |
10 |
72,93 |
||||
|
6 |
10,17 |
5 |
21,20 |
12,5 |
88,00 |
||||||
|
70 |
70 |
2 |
4,26 |
6 |
25,25 |
16 |
115,00 |
||||
|
3 |
6,31 |
8 |
32,40 |
300 |
300 |
6 |
54,52 |
||||
|
4 |
8,29 |
10 |
39,60 |
8 |
71,80 |
||||||
|
5 |
10,20 |
150 |
150 |
4 |
17,95 |
10 |
88,63 |
||||
|
6 |
12,06 |
5 |
22,16 |
12,5 |
108,00 |
||||||
|
80 |
80 |
2 |
4,79 |
6 |
26,26 |
16 |
134,00 |
||||
|
3 |
7,25 |
8 |
34,12 |
400 |
400 |
8 |
96,75 |
||||
|
4 |
9,54 |
10 |
41,53 |
10 |
120,00 |
||||||
|
5 |
11,77 |
160 |
160 |
4 |
19,21 |
12,5 |
147,00 |
||||
|
6 |
13,94 |
5 |
23,73 |
16 |
184,00 |
||||||
|
8 |
18,09 |
6 |
28,14 |
20 |
225,16 |
||||||
|
RECTANGULAR HOLLOW STRUCTURAL SECTIONS |
|||||||||||
|
DIMENSIONS (a x b) mm |
THICKNESS (s) mm |
WEIGHT Kg/m |
DIMENSIONS (a x b) mm |
THICKNESS (s) mm |
WEIGHT Kg/m |
DIMENSIONS (a x b) mm |
THICKNESS (s) mm |
WEIGHT Kg/m |
|||
|
40 |
20 |
2 |
1,76 |
100 |
60 |
3 |
7,25 |
160 |
80 |
3 |
11,02 |
|
2,5 |
2,16 |
4 |
9,54 |
4 |
14,57 |
||||||
|
3 |
2,54 |
5 |
11,77 |
5 |
18,05 |
||||||
|
50 |
30 |
2 |
2,36 |
6 |
13,94 |
6 |
21,48 |
||||
|
2,5 |
2,94 |
120 |
40 |
3 |
7,25 |
180 |
60 |
3 |
11,02 |
||
|
3 |
3,48 |
4 |
9,54 |
4 |
14,57 |
||||||
|
60 |
30 |
2 |
2,62 |
120 |
60 |
3 |
8,19 |
5 |
18,05 |
||
|
3 |
3,96 |
4 |
10,80 |
6 |
21,48 |
||||||
|
60 |
40 |
2 |
3,01 |
5 |
13,34 |
200 |
100 |
4 |
17,95 |
||
|
2,5 |
3,73 |
6 |
15,82 |
5 |
22,16 |
||||||
|
3 |
4,43 |
120 |
80 |
3 |
9,14 |
6 |
26,26 |
||||
|
4 |
5,78 |
4 |
12,06 |
8 |
34,12 |
||||||
|
5 |
7,06 |
5 |
14,91 |
10 |
41,53 |
||||||
|
70 |
30 |
2 |
3,01 |
6 |
17,71 |
12 |
48,50 |
||||
|
3 |
4,43 |
140 |
60 |
3 |
9,14 |
200 |
150 |
6 |
30,97 |
||
|
80 |
40 |
2 |
3,64 |
4 |
12,06 |
8 |
40,40 |
||||
|
2,5 |
4,51 |
6 |
17,71 |
10 |
49,38 |
||||||
|
3 |
5,37 |
140 |
80 |
3 |
10,08 |
250 |
100 |
6 |
30,97 |
||
|
4 |
7,03 |
4 |
13,31 |
8 |
40,40 |
||||||
|
5 |
8,63 |
5 |
14,48 |
250 |
150 |
5 |
30,01 |
||||
|
100 |
40 |
2 |
4,26 |
6 |
19,59 |
6 |
35,68 |
||||
|
3 |
6,31 |
150 |
50 |
3 |
9,14 |
8 |
46,68 |
||||
|
4 |
8,29 |
4 |
12,06 |
10 |
57,23 |
||||||
|
100 |
50 |
2 |
4,58 |
5 |
14,91 |
12 |
67,35 |
||||
|
2,5 |
5,69 |
150 |
100 |
3 |
11,49 |
300 |
200 |
6 |
45,10 |
||
|
3 |
6,78 |
4 |
15,20 |
8 |
59,24 |
||||||
|
4 |
8,92 |
5 |
18,84 |
10 |
72,93 |
||||||
|
5 |
10,99 |
6 |
22,42 |
12 |
86,18 |
||||||
|
6 |
13,00 |
8 |
28,10 |
12,5 |
88,00 |
||||||
